Showroom » John Deere » EZtrak™ Z465
Model Quick Search

$5,699.00

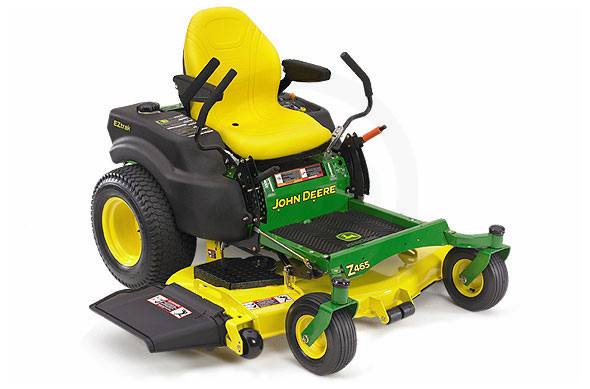

2009 John Deere EZtrak™ Z465
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview



    Power
    • 25 hp-Kawasaki V-Twin, air-cooled engine
    Performance
    • Heavy-duty pump and wheel motor drive system for extra durability and long life; Kanzaki pump; Parker wheel motors
    • Caster wheels and caster wheel towers have sealed bearings for long life and easy steering
    • Offset front caster wheels help improve inside corner trim performance and also help reduce between-blade striping
    • 62-inch Edge™ mower deck with 1/4-inch cut-height increments for excellent cut quality and performance; cut-height adjustment has built-in memory
    • 9-mph ground speed
    Durability
    • Tough 1-1/2-inch x 2-inch frame tubing
    Comfort and Convenience
    • High-back (21-inch) seat with adjustable armrests; no-tools fore-aft seat adjustment with a 3-inch range can be be used by the operator while seated
    • Large 13-inch front caster wheels for a smoother ride; large 23 x 10.5-inch drive tires for better traction and slope performance
    • Two cup holders and open storage compartment
    Motion-Control Levers
    • Adjustable motion-control levers can be adjusted to three different height settings and five different fore-aft settings for increased comfort and more precise control of the machine
    • Standard shock absorber for the motion control levers make it easy and comfortable to maneuver; shock absorber modulates movement of control levers for smoother operation; operator can smoothly and precisely control machine
    Serviceability
    • Steel footrest flips up to provide easy access for servicing the mower deck; easy to clean grass off top of mower; provides convenient access to mower drive
    • Standard wash out ports on the deck make cleaning the underside of the deck easy
    Warranty
    • 2 Year
    Engine
    • Power: 25 hp (18.6 kW)
    • Displacement: 41.2 cu. in. (675 cc)
    • Manufacturer: Kawasaki
    • Cylinders: V-twin
    • Lubrication: Full pressure with replaceable filter, 1.6 qt capacity
    • Type: OHV
    • Battery: 12 volt, 235 cold-crank amps
    • Choke/speed control: Separate levers
    • Cooling method: Air
    • Fuel tank capacity: 3.5 gal. (13.2 l)
    • Fuel gauge: Yes
    Drive train
    • Hydraulic pumps: Kanzaki Dup-10
    • Wheel motors: Parker
    Travel speed
    • Forward speed, mph (km/h): 9 (14.5)
    • Reverse speed, mph (km/h): 3.5 (5.6)
    • Speed and direction control: Twin levers
    • Control adjustment: 3-height / 5-fore-aft
    Chassis
    • Frame: Heavy-duty frame tubing
    • Primer/paint: E-coat/powder
    • Front caster tires: 13x5.0-6
    • Front caster bearings: Sealed ball bearings
    • Drive tires: 23x10.50-12
    • Hourmeter
    • Service interval decal
    • Storage compartment
    • Cup holder
    Seat
    • Seat back height: 21 in. high-back w/armrests
    • Fore-aft adjustment: 3 in. while seated
    • Seat suspension: Yes
    Lift system
    • Type: Hand lever
    • Mower cut height: 1-4 in.
    • Cut height increments: 0.25 in.
    • Preset cut height: Yes
    Mower deck
    • Width of cut: 62 in.
    • Type: Side discharge
    • Mower deck material: 62X = 10 gauge, .135 in. (3.4 mm)
    • Mower drive system: V- belt
    PTO
    • Type: Electric, 125 ft-lb
    • Drive: Belt
    Dimensions
    • Wheelbase: 49.2-in. (125 cm)
    • Overall length: 75.9-in. (193 cm)
    • Width without mower: 47.8-in. (121 cm)
    • Width with mower: 72.5-in. (184 cm)
    • Width with mower (deflector raised for storage): 65.9-in. (167 cm)
    • Height: 45.3-in. (115 cm)
    • Weight: 750 lb. (340 kg)
    Safety
    • Operator presence system
    • Park brake interlock
    • Safety video
    Optional attachments
    • Mulching system
    • Double light kit
    • Rubber floor mat: Standard equipment
    • Mounted sprayer: 15 gallon

    Specifications

    Engine
    Engine Manufacturer Kawasaki
    Horse Power 25 hp (18.6 kW)
    Engine Type V-twin
    Displacement 41.2 cu. in. (675 cc)
    General
    Wheel Size Front caster tires: 13x5.0-6; Drive tires: 23x10.50-12
    Fuel Capacity 3.5 gal. (13.2 l)
    Deck
    Deck Size 62 in.
    Discharge Type Side; Optional: Mulcher

    Compare Models










    Year 2009
    Manufacturer John Deere
    Model EZtrak™ Z465
    Style Riding
    MSRP* $5,699.00
    Deck
    Deck Size 62 in.
    Discharge Type Side; Optional: Mulcher
    Engine
    Engine Manufacturer Kawasaki
    Horse Power 25 hp (18.6 kW)
    Engine Type V-twin
    Displacement 41.2 cu. in. (675 cc)
    General
    Transmission
    Wheel Size Front caster tires: 13x5.0-6; Drive tires: 23x10.50-12
    Fuel Capacity 3.5 gal. (13.2 l)
